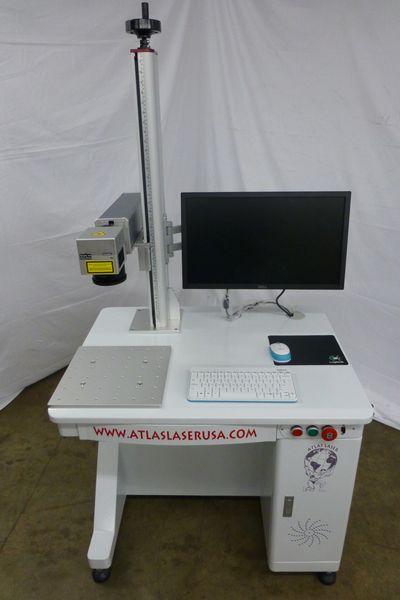

Daedalus D-20

The Atlas Daedalus D-20 brings technology and affordability into one small package. At 20 watt max power this fiber laser will provide endless hours of marking and working ability. On the lower end of our power range the D-20 delivers the power and speed needed to do any job you ask of it.

We put together a package in house to provide the end user with a high quality laser marking experience and a computer system to allow the user to be able to do all the work on one platform. We use the best possible materials and components to keep the quality high and the price as low as possible to make the customer happy.

Computer Specs:

Asus Motherboard

Asus 2gb Graphics Card

21'' Dell or ASUS Monitor 1920x1080

120gb SSD for operating system

1tb HDD for file storage

WIFI

Wireless Mouse and Keyboard

16gb RAM

I5 intel Processor

Windows 10 Pro OS

Daedalus D-20 Laser Specs:

20 watt Power Max

150mm optical lense, provides 6"x6'' marking space with upgradeable lenses for larger or smaller marking areas

Up to 0.062in marking depth

300+ in/sec marking speed

Raycus Power Source

200,000 hr + Laser Module Lifespan

Output Power 10 to 100%

Output Frequency 20-60 KHz

Air Cooled, multiple fans pre-installed

Input 110V

264 watt total power consumption

Dimension (22'' x 30'' x 53'')

Weight 300lbs

Foot pedals included

Laser Safety Glasses included

*Optional Equipment (rotary attachment, safety glasses, optical lenses, Contact for more info)

*CALL FOR CURRENT PRICING*
